uPVC Column Pipe
Duke Pipes’ uPVC column pipe — also called submersible pipe or boring pipe — is engineered for efficient water extraction from borewells using submersible and jet pumps. Manufacturing since 1998 and honored with the National Quality Award by the Government of India, Duke Pipes Private Limited is a trusted column pipe manufacturer in India operating from Gujarat.
Duke’s uPVC column pipes deliver 10–30% more water yield and 10–20% lower power consumption compared to conventional MS, GI, PPR, HDPE and SS pipes — thanks to their ultra-smooth internal surface. Available in sizes from 1″ to 6″ across Nano, Medium, Standard, Heavy, Super Heavy and Extra Super Heavy series, these column pipes for submersible pumps are ideal for domestic, agricultural, and industrial borewells. For column pipe price and availability, call +91 73920 73920.
Applications of Duke uPVC Column Pipe — Borewell & Irrigation
- Column Pipe for Borewell: Duke’s uPVC column pipe is the most critical component connecting a submersible pump to the surface. Its square-threaded design ensures leak-proof, vibration-resistant joints across depths from 25m up to 225+ meters — available in series to match every borewell depth requirement. Suitable for both domestic and agricultural borewells.
- Column Pipes for Submersible Pumps: Specially designed for submersible pump installations, Duke’s column pipes support the combined load of pump, pipe, and water weight. The extra-long coupler in Heavy++ and Super Heavy series ensures maintenance-free jointing over extended periods.
- Agriculture & Farm Irrigation: For farm borewells, Duke’s lightweight boring pipe reduces installation effort while delivering 10–30% higher water yield. Available in diameters suitable for 1 HP to large industrial pumps.
- Installation : Vertical, Horizontal or Inclined

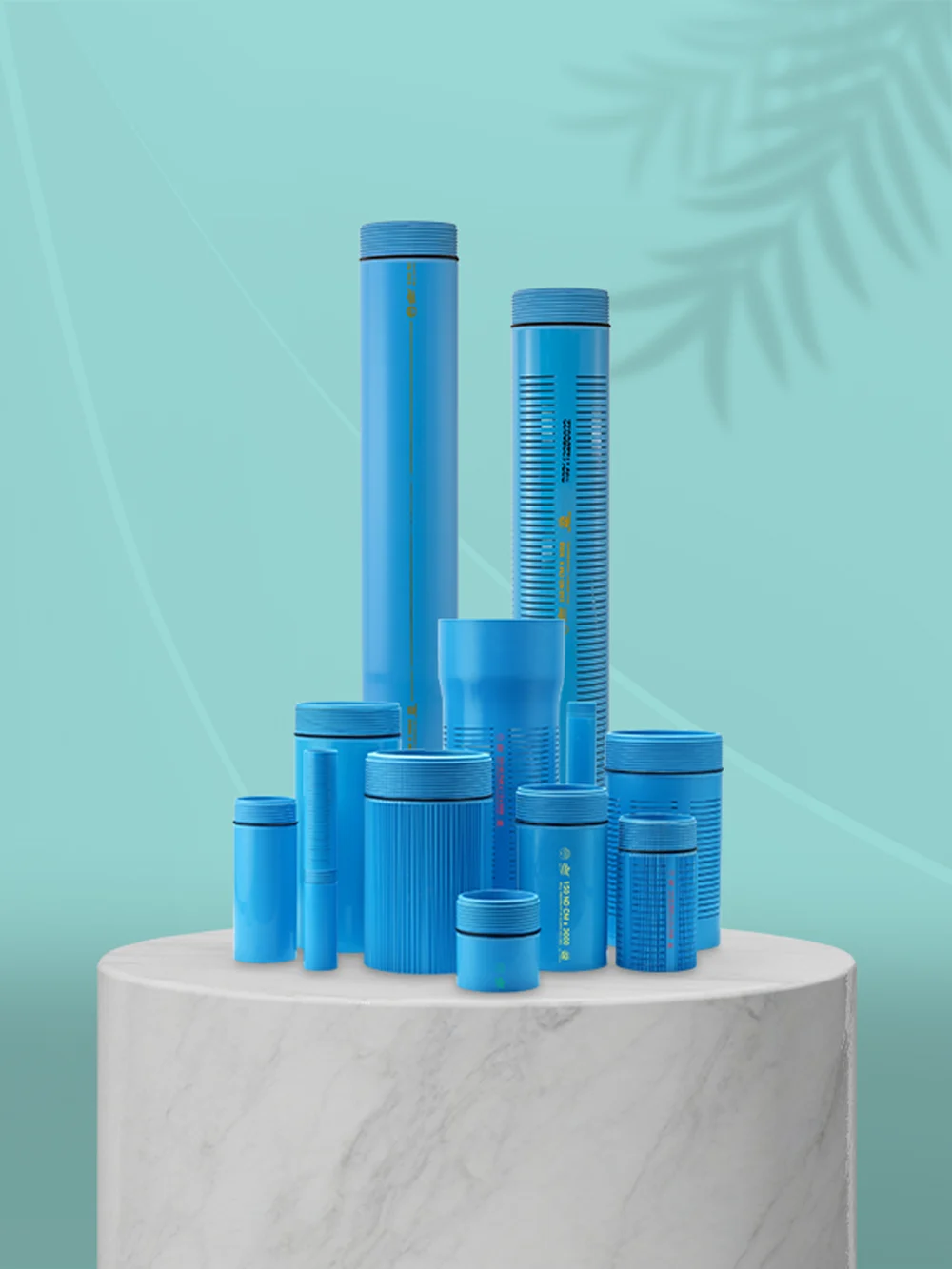

- For borewell groundwater protection, a uPVC Casing Pipe is also essential.
Salient Features
- Corrosion Free & Inert to Chemicals
- Very low friction losses (10 to 30% more water)
- Cost Effective
- Energy Saver
- Long Life
- Non Toxic
- No Electrolytic Deposition
- Easy Installation & handling
uPVC Column Pipe Price & Availability
Duke Pipes’ uPVC column pipe price varies based on size, series, and order quantity. Available series:
- Nano Series — 1″ to 4″ diameter, lightweight, up to 30m depth
- Medium Series — 1″ to 6″ diameter, standard duty
- Standard Series — Higher pressure rating for medium-deep borewells
- Heavy & Super Heavy — For depths up to 225m+ and large pump load
- Extra Super Heavy — Maximum load capacity for industrial borewells
For submersible pipe price or borewell column pipe price, contact us directly — special bulk order discounts available.
Pan-India delivery: Gujarat, Rajasthan, Maharashtra, Haryana, MP & more.
📞 +91 73920 73920 | 02742-280023/24
📧 [email protected]
Get Best Price → contact-us
Special Features & Identity
- Surface finish of this pipe is extremely smooth which reduces the hydraulic friction losses and increase flow of water.
- Internal and External Square threaded spigot ends and rubber gasket for easy, reliable joining and pressure sealing.
- Special square thread given quick & easy installation facility and having very high load bearing capacity.
- Inside sealing ring for turbulence free leak proof joint and prevents over tightening.
- Step ring prevents leakages and control the vibration and over tightening.
- Inkjet printing & Hallmark to prevent duplication in market & ensures original genuine products.
- Very smooth internal surface increases 10% to 30% Water & Reduces 10% to 20% Power consumption
- Provision of outer ring to prevent leakage and over tightening.
- Extra-long coupler in Heavy++ & Super Heavy series for higher load pulling strength and maintenance free jointing system over period of time
Why Choose Duke uPVC Column Pipe?
- National Quality Award 2007 — Government of India recognition
- Since 1998 — 25+ years of trusted manufacturing
- IS certified — Inkjet printing & Hallmark on every pipe
- Nano to Extra Super Heavy — Widest range in India (1″ to 6″)
- 10–30% more water — Ultra-smooth inner surface reduces friction
- 10–20% energy savings — Lower pump running costs
- Leak-proof square threads — Step ring + inside sealing ring system
- Gujarat manufacturer — Competitive pricing, fastest delivery
- Load data available — Detailed technical specs for every series
Technical Specification of Duke uPVC Column/Riser Pipes
| Size and Type OD – outside Dia. DN – Nominal Dia | Wall Thickness (mm) | Outer Dia. (mm) | Total Pipe Length | Coupler OD | Pressure Rating | Details of Packing | Colour coding of Pipes Packing Bag | ||
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | in mm | in mm | Kg | Nos | colour | |
| (1.0) DN:25 mm OD: 33 mm | |||||||||
| 1.0″ nano x 12.5 kg | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | 42 | 12.5 | 25 | ● |
| 1.0″ nano x 12.5 kg (Bell Type) | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | – | 12.5 | 25 | ● |
| 1.0″ nano x 15 Kg | 3.50 | 3.70 | 33.27 | 33.53 | 3060 | 45.5 | 15.0 | 25 | ● |
| 1.0″ nano x 15 kg (Bell Type) | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | – | 15.0 | 25 | ● |
| 1.0″ medium | 3.50 | 3.75 | 33.27 | 33.53 | 3060 | 45.5 | 21.0 | 25 | ● |
| 1.0″ medium (Bell Type) | 3.50 | 3.75 | 33.27 | 33.53 | 3010 | – | 21.0 | 25 | ● |
| 1.0″ Standard | 4.80 | 5.30 | 33.27 | 33.53 | 3060 | 45.5 | 26.0 | 25 | ● |
| (1.25″) DN:32 mm OD: 42 mm | |||||||||
| 1.25″ nano x 10 kg | 3.90 | 4.00 | 42.03 | 42.29 | 3010 | 55.5 | 10.0 | 25 | ● |
| 1.25″ nano x 12.5 kg | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | 55.5 | 12.5 | 25 | ● |
| 1.25″ nano x 12.5 kg (Bell Type) | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | – | 12.5 | 25 | ● |
| 1.25″ nano x 15 kg | 4.20 | 4.40 | 42.03 | 42.29 | 3060 | 55.5 | 15.0 | 25 | ● |
| 1.25″ nano x 15 kg (Bell Type) | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | – | 15.0 | 25 | ● |
| 1.25″ nano++ | 4.20 | 4.40 | 42.03 | 42.29 | 3065 | 55.5 | 15.0 | 25 | ● |
| 1.25″ medium | 4.20 | 4.45 | 42.03 | 42.29 | 3060 | 55.5 | 21.0 | 25 | ● |
| 1.25″ medium++ | 4.20 | 4.45 | 42.03 | 42.29 | 3065 | 62.5 | 21.0 | 25 | ● |
| 1.25″ medium (Bell type) | 4.20 | 4.45 | 42.03 | 42.29 | 3010 | – | 21.0 | 25 | ● |
| 1.25″ standard | 5.00 | 5.50 | 42.03 | 42.29 | 3060 | 55.5 | 26.0 | 25 | ● |
| 1.25″ standard++ | 5.00 | 5.50 | 42.03 | 42.29 | 3080 | 55.5 | 26.0 | 25 | ● |
| 1.25″ Heavy | 6.40 | 6.70 | 42.03 | 42.29 | 3060 | 55.5 | 35.0 | 25 | ● |
| 1.25″ Heavy++ | 6.40 | 6.70 | 42.03 | 42.29 | 3065 | 62.5 | 35.0 | 25 | ● |
| 1.25″ Super heavy+ | 6.45 | 6.75 | 42.03 | 42.29 | 3065 | 62.5 | 35.0 | 25 | ● |
| 1.25″ Extra Super Heavy | 6.70 | 7.20 | 42.03 | 42.29 | 3065 | 62.5 | 40.0 | 25 | ● |
| (1.5) DN:40 mm OD: 48 mm | |||||||||
| 1.5″ Nano | 4.30 | 4.60 | 48.11 | 48.41 | 3060 | 62.5 | 15 | 20 | ● |
| 1.5″ Nano (Bell Type) | 4.30 | 4.60 | 48.11 | 48.41 | 3010 | – | 15 | 20 | ● |
| 1.5″ Medium | 4.30 | 4.80 | 48.11 | 48.41 | 3060 | 62.5 | 21 | 20 | ● |
| 1.5″ Medium++ | 4.30 | 4.80 | 48.11 | 48.41 | 3065 | 62.5 | 21 | 20 | ● |
| 1.5″ Medium (Bell Type) | 4.30 | 4.80 | 48.11 | 48.41 | 3010 | – | 21 | 20 | ● |
| 1.5″ Standard | 5.20 | 5.45 | 48.11 | 48.41 | 3060 | 62.5 | 26 | 20 | ● |
| 1.5″ Standard++ | 5.20 | 5.45 | 48.11 | 48.41 | 3065 | 62.5 | 26 | 20 | ● |
| 1.5″ Heavy | 6.50 | 6.70 | 48.11 | 48.41 | 3060 | 62.5 | 35 | 20 | ● |
| 1.5″ Heavy++ | 6.50 | 6.70 | 48.11 | 48.41 | 3065 | 72.5 | 35 | 20 | ● |
| 1.5″ Super Heavy | 7.00 | 7.50 | 48.11 | 48.41 | 3100 | 62.5 | 35 | 20 | ● |
| (2.0) DN:50 mm OD: 60 mm | |||||||||
| 2.0″ Nano | 4.80 | 5.20 | 60.17 | 60.47 | 3070 | 72.5 | 11 | 15 | ● |
| 2.0″ Eco-Medium | 4.80 | 5.20 | 60.17 | 60.47 | 3070 | 78.5 | 13 | 15 | ● |
| 2.0″ Medium | 4.80 | 5.40 | 60.17 | 60.47 | 3070 | 78.5 | 15 | 15 | ● |
| 2.0″ Standard | 6.00 | 6.50 | 60.17 | 60.47 | 3070 | 78.5 | 20 | 15 | ● |
| 2.0″ Standard++ | 6.40 | 6.70 | 60.17 | 60.47 | 3070 | 78.5 | 23 | 15 | ● |
| 2.0″ Heavy | 7.30 | 8.00 | 60.17 | 60.47 | 3070 | 84 | 27 | 10 | ● |
| 2.0″ Super Heavy | 8.00 | 8.30 | 60.17 | 60.47 | 3110 | 84 | 35 | 10 | ● |
| 2.0″ Extra Super Heavy | 9.50 | 10.0 | 60.17 | 60.47 | 3110 | 84 | 40 | 10 | ● |
| (2.25) DN:57 mm OD: 63 mm | |||||||||
| 2.25″ Medium | 5.00 | 5.20 | 63.0 | 63.5 | 3070 | 90 | 15 | 10 | ● |
| 2.25″ Standard | 6.80 | 7.20 | 63.0 | 63.5 | 3070 | 90 | 18 | 10 | ● |
| 2.25″ Heavy | 7.80 | 8.30 | 63.0 | 63.5 | 3070 | 90 | 26 | 10 | ● |
| 2.25″ Super Heavy | 8.50 | 9.00 | 63.0 | 63.5 | 3100 | 93 | 35 | 10 | ● |
| 2.25″ Extra Super Heavy | 10.50 | 11.0 | 63.0 | 63.5 | 3100 | 90 | 40 | 10 | ● |
| (2.5) DN:65 mm OD: 75 mm | |||||||||
| 2.5″ Nano | 5.00 | 5.30 | 74.84 | 75.2 | 3070 | 92.5 | 15 | 10 | ● |
| 2.5″ Medium | 5.30 | 5.70 | 74.84 | 75.2 | 3075 | 92.5 | 18 | 10 | ● |
| 2.5″ Standard | 6.60 | 7.00 | 74.84 | 75.2 | 3075 | 92.5 | 21 | 10 | ● |
| 2.5″ Standard+ | 8.00 | 8.40 | 74.84 | 75.2 | 3075 | 92.5 | 22.5 | 10 | ● |
| 2.5″ Standard++ | 8.00 | 8.40 | 74.84 | 75.2 | 3075 | 100 | 24.5 | 10 | ● |
| 2.5″ Heavy | 8.70 | 9.10 | 74.84 | 75.2 | 3075 | 100 | 26 | 10 | ● |
| 2.5″ Heavy++ | 9.80 | 10.30 | 74.84 | 75.2 | 3110 | 100 | 35 | 7 | ● |
| 2.5″ Extra Super Heavy | 12.50 | 13.00 | 74.84 | 75.2 | 3110 | 100 | 40 | 7 | ● |
| (3.0) DN:80 mm OD: 88 mm | |||||||||
| 3.0″ Medium | 6.00 | 6.30 | 87.7 | 88.1 | 3075 | 107 | 17 | 8 | ● |
| 3.0″ Standard | 7.40 | 7.90 | 87.7 | 88.1 | 3075 | 110 | 18 | 8 | ● |
| 3.0″ Standard++ | 8.50 | 8.90 | 87.7 | 88.1 | 3075 | 114 | 21 | 8 | ● |
| 3.0″ Heavy | 9.00 | 10.50 | 87.7 | 88.1 | 3075 | 114 | 26 | 8 | ● |
| 3.0″ Heavy++ | 9.00 | 10.50 | 87.7 | 88.1 | 3110 | 120 | 26 | 8 | ● |
| 3.0″ Super Heavy | 10.80 | 11.00 | 87.7 | 88.1 | 3110 | 120 | 35 | 8 | ● |
| 3.0″ Extra Super Heavy | 13.40 | 14.00 | 87.7 | 88.1 | 3110 | 120 | 40 | 8 | ● |
| (3.5) DN:90 mm OD: 100 mm | |||||||||
| 3.5″ Heavy | 11.40 | 11.70 | 99.90 | 100.2 | 3110 | 138 | 26 | 6 | ● |
| 3.5″ Heavy++ | 12.80 | 13.00 | 99.90 | 100.2 | 3110 | 138 | 32 | 6 | ● |
| 3.5″ Super Heavy | 13.00 | 13.50 | 99.90 | 100.2 | 3110 | 138 | 35 | 6 | ● |
| (4.0) DN:100 mm OD: 113 mm | |||||||||
| 4.0″ Nano | 5.80 | 6.00 | 113.07 | 113.53 | 3080 | 136 | 9 | 6 | ● |
| 4.0″ Nano++ | 6.20 | 6.40 | 113.07 | 113.53 | 3080 | 136 | 10 | 6 | ● |
| 4.0″ Medium | 6.30 | 6.90 | 113.07 | 113.53 | 3080 | 136 | 15 | 6 | ● |
| 4.0″ Standard | 8.50 | 9.00 | 113.07 | 113.53 | 3080 | 136 | 18 | 6 | ● |
| 4.0″ Standard-Turbo | 8.60 | 9.10 | 113.07 | 113.53 | 3080 | 136 | 18 | 6 | ● |
| 4.0″ Standard++ | 11.00 | 11.30 | 113.07 | 113.53 | 3080 | 138 | 21 | 6 | ● |
| 4.0″ Heavy | 12.00 | 12.80 | 113.07 | 113.53 | 3080 | 143 | 26 | 3 | ● |
| 4.0″ Super Heavy | 12.30 | 13.00 | 113.07 | 113.53 | 3115 | 143 | 35 | 3 | ● |
| 4.0″ Extra Super Heavy | 15.00 | 15.30 | 113.07 | 113.53 | 3115 | 143 | 40 | 3 | ● |
| (5.0) DN:125 mm OD: 141 mm | |||||||||
| 5.0″ Medium | 7.70 | 8.40 | 141.05 | 141.55 | 3120 | 165 | 10 | 3 | ● |
| 5.0″ Standard | 10.30 | 10.80 | 141.05 | 141.55 | 3120 | 165 | 16 | 3 | ● |
| 5.0″ Heavy | 15.00 | 15.30 | 141.05 | 141.55 | 3120 | 165 | 26 | 3 | ● |
| 5.0″ Super Heavy | 16.50 | 17.00 | 141.05 | 141.55 | 3120 | 165 | 35 | 3 | ● |
| (6.0) DN:150 mm OD: 168 mm | |||||||||
| 6.0″ Standard | 14.10 | 14.45 | 167.7 | 168.8 | 3115 | 200 | 18 | 1 | ● |
| 6.0″ Heavy | 16.50 | 17.30 | 167.7 | 168.8 | 3115 | 200 | 26 | 1 | ● |
Load & Pressure Technical Data
| Type & Size OD – Outside Dia NB – Nominal Bore | Ultimate Breaking Load (Kgf) | Safe Loading with Chain Pulling (Kgf) | Safe Allowable Hydrostatic Pressure (Kgf) | Safe Total Submerging Depth (ft) | Safe Installation Depth (Mtr) | Safe Installation Depth (Feet) | Weight of Pipes on Suitabl Depth in Kg (A) | Weight of Suitable Water on Depth in Kg (B) | Weight of Pump on Suitable Depth in Kg (C) | Total Weight on Suitable Depth in Kg (A+B+C) |
|---|---|---|---|---|---|---|---|---|---|---|
| OD: 33mm (1″) NB: 25 mm | ||||||||||
| Nano 12.5 | 850 | 500 | 12.5 | 125 | 25 | 80 | 9 | 15 | 19.7 | 43.70 |
| Nano 15 | 1000 | 580 | 15 | 150 | 30 | 99 | 10 | 19 | 19.7 | 48.70 |
| Medium | 1500 | 800 | 21 | 210 | 65 | 214.5 | 26 | 41 | 23.2 | 90.20 |
| Standard | 2200 | 1250 | 26 | 300 | 150 | 495 | 75 | 85 | 20.8 | 180.80 |
| OD: 42mm (1.25″) NB: 32 mm | ||||||||||
| Nano 12.5 | 1600 | 800 | 12.5 | 125 | 25 | 80 | 17 | 23 | 17.8 | 51.80 |
| Nano 15 | 1720 | 900 | 15 | 150 | 30 | 99 | 17 | 28 | 17.8 | 62.80 |
| Medium | 1800 | 1150 | 21 | 210 | 65 | 214.5 | 39 | 61 | 21.8 | 121.80 |
| Standard | 2650 | 1400 | 26 | 250 | 150 | 495 | 99 | 135 | 22.6 | 256.60 |
| Heavy | 3100 | 1800 | 35 | 280 | 175 | 574 | 113 | 135 | 100 | 348.0 |
| Super Heavy | 3150 | 1850 | 35 | 400 | 185 | 610 | – | – | – | – |
| Extra Superheavy | 3500 | 2070 | 40 | 450 | 198 | 650 | – | – | – | – |
| OD: 48mm (1.5″) NB: 40 mm | ||||||||||
| Nano | 2000 | 1000 | 15 | 150 | 30 | 99 | 19 | 33 | 24.1 | 76.10 |
| Medium | 2900 | 1200 | 21 | 210 | 65 | 214.5 | 41 | 72 | 24.5 | 137.50 |
| Standard | 3200 | 1500 | 26 | 260 | 120 | 396 | 97 | 127 | 35.9 | 259.90 |
| Heavy | 4200 | 2000 | 35 | 350 | 160 | 528 | 174 | 162 | 41.6 | 377.60 |
| Super Heavy | 4350 | 2150 | 35 | 400 | 185 | 610 | – | – | – | – |
| OD: 60mm (2″) ND: 50 mm | ||||||||||
| Eco Medium | 2730 | 1750 | 13 | 90 | 30 | 99 | 21 | 68 | 51 | 140.0 |
| Nano | 2730 | 1750 | 11 | 90 | 30 | 99 | 21 | 68 | 51 | 140.0 |
| Medium | 3040 | 2000 | 15 | 130 | 65 | 214.5 | 54 | 148 | 60 | 262.0 |
| Standard | 4950 | 2500 | 20 | 170 | 100 | 330 | 116 | 216 | 75 | 407.0 |
| Standard++ | 5098 | 2700 | 23 | 200 | 120 | 396 | 154 | 255 | 106 | 515.0 |
| Heavy | 5682 | 3200 | 27 | 270 | 180 | 594 | 273 | 368 | 126 | 767.0 |
| Super Heavy | 6200 | 3600 | 35 | 350 | 225 | 735 | 380.0 | 440.0 | 141 | 961.0 |
| Extra Superheavy | 8200 | 3800 | 40 | 300 | 185 | 750 | 450.0 | 320.0 | 150 | 920.0 |
| OD: 63mm (2 1/4″) ND: 57 mm | ||||||||||
| Heavy | 5750 | 3385 | 26 | 300 | 178 | 585 | – | – | – | – |
| Super Heavy | 5800 | 3500 | 35 | 330 | 220 | 720 | – | – | – | – |
| OD: 75mm (2.5″) ND: 65 mm | ||||||||||
| Medium | 4496 | 2800 | 13 | 100 | 65 | 214.5 | 88 | 181 | 80 | 349.0 |
| Standard | 5934 | 3600 | 18 | 160 | 120 | 396 | 188 | 321 | 122.5 | 631.50 |
| Standard++ | 6683 | 3800 | 21 | 210 | 150 | 495 | 276 | 384 | 149 | 809.50 |
| Heavy | 7432 | 4000 | 26 | 260 | 180 | 594 | 364 | 448 | 176 | 988.0 |
| Super Heavy | 9194 | 4250 | 35 | 350 | 200 | 660 | 475 | 475 | 203 | 1159.0 |
| Extra Superheavy | 10000 | 4850 | 40 | 300 | 185 | 750 | 216 | 530 | 200 | 946.0 |
| OD: 88mm (3″) ND: 80 mm | ||||||||||
| Medium | 5934 | 4000 | 11 | 110 | 65 | 214.5 | 94 | 325 | 72 | 491.0 |
| Standard | 9112 | 5010 | 18 | 170 | 120 | 396 | 234 | 578 | 294 | 1106.0 |
| Standard++ | 9556 | 5505 | 21 | 185 | 150 | 495 | 355 | 693 | 351 | 1398.0 |
| Heavy | 10000 | 6000 | 26 | 200 | 180 | 594 | 475 | 808 | 408.5 | 1691.50 |
| Heavy ++ | 10500 | 6200 | 26 | 260 | 190 | 627 | 502 | 853 | 414 | 1796.0 |
| Super Heavy | 12000 | 6500 | 35 | 350 | 225 | 742.5 | 720 | 993 | 418 | 2131.0 |
| Extra Superheavy | 12000 | 6850 | 40 | 300 | 185 | 750 | 303 | 720 | 250 | 1273.0 |
| OD: 100mm (3.5″) ND: 90 mm | ||||||||||
| Heavy ++ | 13568 | 9350 | 32 | 260 | 190 | 627 | 668 | 980 | 425 | 2073.0 |
| Super Heavy | 13568 | 9350 | 35 | 300 | 230 | 750 | – | – | – | – |
| OD: 113mm (4″) ND: 100 mm | ||||||||||
| Medium | 11402 | 4500 | 10 | 100 | 65 | 214.5 | 179 | 428 | 181 | 728.0 |
| Standard | 12150 | 7250 | 16 | 150 | 120 | 396 | 343 | 759 | 326 | 1428.0 |
| Standard++ | 14065 | 9625 | 21 | 175 | 150 | 495 | 566 | 908 | 383 | 1855.0 |
| Heavy | 15980 | 12000 | 26 | 200 | 180 | 594 | 790 | 1057 | 441.5 | 2288.0 |
| Heavy ++ | 16636 | 12500 | 26 | 260 | 190 | 627 | 834 | 1115 | 452 | 2401.0 |
| Super Heavy | 17536 | 13100 | 35 | 350 | 225 | 742.5 | 1199 | 1306 | 455 | 2960.0 |
| Extra Superheavy | 17536 | 13100 | 40 | 350 | 225 | 742.5 | 1199 | 1306 | 455 | 2960.0 |
| OD: 140mm (5″) ND: 125 mm | ||||||||||
| Medium | 12000 | 7540 | 10 | 100 | 65 | 214.5 | 272 | 526 | 176 | 974.0 |
| Standard | 16000 | 10440 | 16 | 160 | 120 | 396 | 558 | 933 | 377 | 1868.0 |
| Heavy | 17058 | 16240 | 26 | 200 | 180 | 594 | 1123 | 1282 | 465 | 2870.0 |
| Heavy ++ | 18000 | 170CC | 26 | 260 | 190 | 627 | 1185 | 1354 | 465 | 3004.0 |
| Super Heavy | 30000 | 180CC | 35 | 350 | 225 | 742.5 | 1827 | 1565 | 478 | 3870.0 |
| OD: 168mm (6″) ND: 150 mm | ||||||||||
| Standard | 18050 | 12550 | 16 | 160 | 120 | 396.0 | 1420 | 2250 | 800 | 4470 |
| Heavy | 22000 | 18050 | 26 | 260 | 180 | 594 | 1773 | 2224 | 1000 | 4997 |
Duke Pipes’ uPVC column pipe — also called submersible pipe or boring pipe — is engineered for efficient water extraction from borewells using submersible and jet pumps. Manufacturing since 1998 and honored with the National Quality Award by the Government of India, Duke Pipes Private Limited is a trusted column pipe manufacturer in India operating from Gujarat.
Duke’s uPVC column pipes deliver 10–30% more water yield and 10–20% lower power consumption compared to conventional MS, GI, PPR, HDPE and SS pipes — thanks to their ultra-smooth internal surface. Available in sizes from 1″ to 6″ across Nano, Medium, Standard, Heavy, Super Heavy and Extra Super Heavy series, these column pipes for submersible pumps are ideal for domestic, agricultural, and industrial borewells. For column pipe price and availability, call +91 73920 73920.
Applications of Duke uPVC Column Pipe — Borewell & Irrigation
- Column Pipe for Borewell: Duke’s uPVC column pipe is the most critical component connecting a submersible pump to the surface. Its square-threaded design ensures leak-proof, vibration-resistant joints across depths from 25m up to 225+ meters — available in series to match every borewell depth requirement. Suitable for both domestic and agricultural borewells.
- Column Pipes for Submersible Pumps: Specially designed for submersible pump installations, Duke’s column pipes support the combined load of pump, pipe, and water weight. The extra-long coupler in Heavy++ and Super Heavy series ensures maintenance-free jointing over extended periods.
- Agriculture & Farm Irrigation: For farm borewells, Duke’s lightweight boring pipe reduces installation effort while delivering 10–30% higher water yield. Available in diameters suitable for 1 HP to large industrial pumps.
- Installation : Vertical, Horizontal or Inclined
- For borewell groundwater protection, a uPVC Casing Pipe is also essential.
Salient Features
- Corrosion Free & Inert to Chemicals
- Very low friction losses (10 to 30% more water)
- Cost Effective
- Energy Saver
- Long Life
- Non Toxic
- No Electrolytic Deposition
- Easy Installation & handling
uPVC Column Pipe Price & Availability
Duke Pipes’ uPVC column pipe price varies based on size, series, and order quantity. Available series:
- Nano Series — 1″ to 4″ diameter, lightweight, up to 30m depth
- Medium Series — 1″ to 6″ diameter, standard duty
- Standard Series — Higher pressure rating for medium-deep borewells
- Heavy & Super Heavy — For depths up to 225m+ and large pump load
- Extra Super Heavy — Maximum load capacity for industrial borewells
For submersible pipe price or borewell column pipe price, contact us directly — special bulk order discounts available.
Pan-India delivery: Gujarat, Rajasthan, Maharashtra, Haryana, MP & more.
📞 +91 73920 73920 | 02742-280023/24
📧 [email protected]
Get Best Price → contact-us
Special Features & Identity
- Surface finish of this pipe is extremely smooth which reduces the hydraulic friction losses and increase flow of water.
- Internal and External Square threaded spigot ends and rubber gasket for easy, reliable joining and pressure sealing.
- Special square thread given quick & easy installation facility and having very high load bearing capacity.
- Inside sealing ring for turbulence free leak proof joint and prevents over tightening.
- Step ring prevents leakages and control the vibration and over tightening.
- Inkjet printing & Hallmark to prevent duplication in market & ensures original genuine products.
- Very smooth internal surface increases 10% to 30% Water & Reduces 10% to 20% Power consumption
- Provision of outer ring to prevent leakage and over tightening.
- Extra-long coupler in Heavy++ & Super Heavy series for higher load pulling strength and maintenance free jointing system over period of time
Why Choose Duke uPVC Column Pipe?
- National Quality Award 2007 — Government of India recognition
- Since 1998 — 25+ years of trusted manufacturing
- IS certified — Inkjet printing & Hallmark on every pipe
- Nano to Extra Super Heavy — Widest range in India (1″ to 6″)
- 10–30% more water — Ultra-smooth inner surface reduces friction
- 10–20% energy savings — Lower pump running costs
- Leak-proof square threads — Step ring + inside sealing ring system
- Gujarat manufacturer — Competitive pricing, fastest delivery
- Load data available — Detailed technical specs for every series
Technical Specification of Duke uPVC Column/Riser Pipes
| Size and Type OD – outside Dia. DN – Nominal Dia | Wall Thickness (mm) | Outer Dia. (mm) | Total Pipe Length | Coupler OD | Pressure Rating | Details of Packing | Colour coding of Pipes Packing Bag | ||
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | in mm | in mm | Kg | Nos | colour | |
| (1.0) DN:25 mm OD: 33 mm | |||||||||
| 1.0″ nano x 12.5 kg | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | 42 | 12.5 | 25 | ● |
| 1.0″ nano x 12.5 kg (Bell Type) | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | – | 12.5 | 25 | ● |
| 1.0″ nano x 15 Kg | 3.50 | 3.70 | 33.27 | 33.53 | 3060 | 45.5 | 15.0 | 25 | ● |
| 1.0″ nano x 15 kg (Bell Type) | 3.50 | 3.70 | 33.27 | 33.53 | 3010 | – | 15.0 | 25 | ● |
| 1.0″ medium | 3.50 | 3.75 | 33.27 | 33.53 | 3060 | 45.5 | 21.0 | 25 | ● |
| 1.0″ medium (Bell Type) | 3.50 | 3.75 | 33.27 | 33.53 | 3010 | – | 21.0 | 25 | ● |
| 1.0″ Standard | 4.80 | 5.30 | 33.27 | 33.53 | 3060 | 45.5 | 26.0 | 25 | ● |
| (1.25″) DN:32 mm OD: 42 mm | |||||||||
| 1.25″ nano x 10 kg | 3.90 | 4.00 | 42.03 | 42.29 | 3010 | 55.5 | 10.0 | 25 | ● |
| 1.25″ nano x 12.5 kg | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | 55.5 | 12.5 | 25 | ● |
| 1.25″ nano x 12.5 kg (Bell Type) | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | – | 12.5 | 25 | ● |
| 1.25″ nano x 15 kg | 4.20 | 4.40 | 42.03 | 42.29 | 3060 | 55.5 | 15.0 | 25 | ● |
| 1.25″ nano x 15 kg (Bell Type) | 4.20 | 4.40 | 42.03 | 42.29 | 3010 | – | 15.0 | 25 | ● |
| 1.25″ nano++ | 4.20 | 4.40 | 42.03 | 42.29 | 3065 | 55.5 | 15.0 | 25 | ● |
| 1.25″ medium | 4.20 | 4.45 | 42.03 | 42.29 | 3060 | 55.5 | 21.0 | 25 | ● |
| 1.25″ medium++ | 4.20 | 4.45 | 42.03 | 42.29 | 3065 | 62.5 | 21.0 | 25 | ● |
| 1.25″ medium (Bell type) | 4.20 | 4.45 | 42.03 | 42.29 | 3010 | – | 21.0 | 25 | ● |
| 1.25″ standard | 5.00 | 5.50 | 42.03 | 42.29 | 3060 | 55.5 | 26.0 | 25 | ● |
| 1.25″ standard++ | 5.00 | 5.50 | 42.03 | 42.29 | 3080 | 55.5 | 26.0 | 25 | ● |
| 1.25″ Heavy | 6.40 | 6.70 | 42.03 | 42.29 | 3060 | 55.5 | 35.0 | 25 | ● |
| 1.25″ Heavy++ | 6.40 | 6.70 | 42.03 | 42.29 | 3065 | 62.5 | 35.0 | 25 | ● |
| 1.25″ Super heavy+ | 6.45 | 6.75 | 42.03 | 42.29 | 3065 | 62.5 | 35.0 | 25 | ● |
| 1.25″ Extra Super Heavy | 6.70 | 7.20 | 42.03 | 42.29 | 3065 | 62.5 | 40.0 | 25 | ● |
| (1.5) DN:40 mm OD: 48 mm | |||||||||
| 1.5″ Nano | 4.30 | 4.60 | 48.11 | 48.41 | 3060 | 62.5 | 15 | 20 | ● |
| 1.5″ Nano (Bell Type) | 4.30 | 4.60 | 48.11 | 48.41 | 3010 | – | 15 | 20 | ● |
| 1.5″ Medium | 4.30 | 4.80 | 48.11 | 48.41 | 3060 | 62.5 | 21 | 20 | ● |
| 1.5″ Medium++ | 4.30 | 4.80 | 48.11 | 48.41 | 3065 | 62.5 | 21 | 20 | ● |
| 1.5″ Medium (Bell Type) | 4.30 | 4.80 | 48.11 | 48.41 | 3010 | – | 21 | 20 | ● |
| 1.5″ Standard | 5.20 | 5.45 | 48.11 | 48.41 | 3060 | 62.5 | 26 | 20 | ● |
| 1.5″ Standard++ | 5.20 | 5.45 | 48.11 | 48.41 | 3065 | 62.5 | 26 | 20 | ● |
| 1.5″ Heavy | 6.50 | 6.70 | 48.11 | 48.41 | 3060 | 62.5 | 35 | 20 | ● |
| 1.5″ Heavy++ | 6.50 | 6.70 | 48.11 | 48.41 | 3065 | 72.5 | 35 | 20 | ● |
| 1.5″ Super Heavy | 7.00 | 7.50 | 48.11 | 48.41 | 3100 | 62.5 | 35 | 20 | ● |
| (2.0) DN:50 mm OD: 60 mm | |||||||||
| 2.0″ Nano | 4.80 | 5.20 | 60.17 | 60.47 | 3070 | 72.5 | 11 | 15 | ● |
| 2.0″ Eco-Medium | 4.80 | 5.20 | 60.17 | 60.47 | 3070 | 78.5 | 13 | 15 | ● |
| 2.0″ Medium | 4.80 | 5.40 | 60.17 | 60.47 | 3070 | 78.5 | 15 | 15 | ● |
| 2.0″ Standard | 6.00 | 6.50 | 60.17 | 60.47 | 3070 | 78.5 | 20 | 15 | ● |
| 2.0″ Standard++ | 6.40 | 6.70 | 60.17 | 60.47 | 3070 | 78.5 | 23 | 15 | ● |
| 2.0″ Heavy | 7.30 | 8.00 | 60.17 | 60.47 | 3070 | 84 | 27 | 10 | ● |
| 2.0″ Super Heavy | 8.00 | 8.30 | 60.17 | 60.47 | 3110 | 84 | 35 | 10 | ● |
| 2.0″ Extra Super Heavy | 9.50 | 10.0 | 60.17 | 60.47 | 3110 | 84 | 40 | 10 | ● |
| (2.25) DN:57 mm OD: 63 mm | |||||||||
| 2.25″ Medium | 5.00 | 5.20 | 63.0 | 63.5 | 3070 | 90 | 15 | 10 | ● |
| 2.25″ Standard | 6.80 | 7.20 | 63.0 | 63.5 | 3070 | 90 | 18 | 10 | ● |
| 2.25″ Heavy | 7.80 | 8.30 | 63.0 | 63.5 | 3070 | 90 | 26 | 10 | ● |
| 2.25″ Super Heavy | 8.50 | 9.00 | 63.0 | 63.5 | 3100 | 93 | 35 | 10 | ● |
| 2.25″ Extra Super Heavy | 10.50 | 11.0 | 63.0 | 63.5 | 3100 | 90 | 40 | 10 | ● |
| (2.5) DN:65 mm OD: 75 mm | |||||||||
| 2.5″ Nano | 5.00 | 5.30 | 74.84 | 75.2 | 3070 | 92.5 | 15 | 10 | ● |
| 2.5″ Medium | 5.30 | 5.70 | 74.84 | 75.2 | 3075 | 92.5 | 18 | 10 | ● |
| 2.5″ Standard | 6.60 | 7.00 | 74.84 | 75.2 | 3075 | 92.5 | 21 | 10 | ● |
| 2.5″ Standard+ | 8.00 | 8.40 | 74.84 | 75.2 | 3075 | 92.5 | 22.5 | 10 | ● |
| 2.5″ Standard++ | 8.00 | 8.40 | 74.84 | 75.2 | 3075 | 100 | 24.5 | 10 | ● |
| 2.5″ Heavy | 8.70 | 9.10 | 74.84 | 75.2 | 3075 | 100 | 26 | 10 | ● |
| 2.5″ Heavy++ | 9.80 | 10.30 | 74.84 | 75.2 | 3110 | 100 | 35 | 7 | ● |
| 2.5″ Extra Super Heavy | 12.50 | 13.00 | 74.84 | 75.2 | 3110 | 100 | 40 | 7 | ● |
| (3.0) DN:80 mm OD: 88 mm | |||||||||
| 3.0″ Medium | 6.00 | 6.30 | 87.7 | 88.1 | 3075 | 107 | 17 | 8 | ● |
| 3.0″ Standard | 7.40 | 7.90 | 87.7 | 88.1 | 3075 | 110 | 18 | 8 | ● |
| 3.0″ Standard++ | 8.50 | 8.90 | 87.7 | 88.1 | 3075 | 114 | 21 | 8 | ● |
| 3.0″ Heavy | 9.00 | 10.50 | 87.7 | 88.1 | 3075 | 114 | 26 | 8 | ● |
| 3.0″ Heavy++ | 9.00 | 10.50 | 87.7 | 88.1 | 3110 | 120 | 26 | 8 | ● |
| 3.0″ Super Heavy | 10.80 | 11.00 | 87.7 | 88.1 | 3110 | 120 | 35 | 8 | ● |
| 3.0″ Extra Super Heavy | 13.40 | 14.00 | 87.7 | 88.1 | 3110 | 120 | 40 | 8 | ● |
| (3.5) DN:90 mm OD: 100 mm | |||||||||
| 3.5″ Heavy | 11.40 | 11.70 | 99.90 | 100.2 | 3110 | 138 | 26 | 6 | ● |
| 3.5″ Heavy++ | 12.80 | 13.00 | 99.90 | 100.2 | 3110 | 138 | 32 | 6 | ● |
| 3.5″ Super Heavy | 13.00 | 13.50 | 99.90 | 100.2 | 3110 | 138 | 35 | 6 | ● |
| (4.0) DN:100 mm OD: 113 mm | |||||||||
| 4.0″ Nano | 5.80 | 6.00 | 113.07 | 113.53 | 3080 | 136 | 9 | 6 | ● |
| 4.0″ Nano++ | 6.20 | 6.40 | 113.07 | 113.53 | 3080 | 136 | 10 | 6 | ● |
| 4.0″ Medium | 6.30 | 6.90 | 113.07 | 113.53 | 3080 | 136 | 15 | 6 | ● |
| 4.0″ Standard | 8.50 | 9.00 | 113.07 | 113.53 | 3080 | 136 | 18 | 6 | ● |
| 4.0″ Standard-Turbo | 8.60 | 9.10 | 113.07 | 113.53 | 3080 | 136 | 18 | 6 | ● |
| 4.0″ Standard++ | 11.00 | 11.30 | 113.07 | 113.53 | 3080 | 138 | 21 | 6 | ● |
| 4.0″ Heavy | 12.00 | 12.80 | 113.07 | 113.53 | 3080 | 143 | 26 | 3 | ● |
| 4.0″ Super Heavy | 12.30 | 13.00 | 113.07 | 113.53 | 3115 | 143 | 35 | 3 | ● |
| 4.0″ Extra Super Heavy | 15.00 | 15.30 | 113.07 | 113.53 | 3115 | 143 | 40 | 3 | ● |
| (5.0) DN:125 mm OD: 141 mm | |||||||||
| 5.0″ Medium | 7.70 | 8.40 | 141.05 | 141.55 | 3120 | 165 | 10 | 3 | ● |
| 5.0″ Standard | 10.30 | 10.80 | 141.05 | 141.55 | 3120 | 165 | 16 | 3 | ● |
| 5.0″ Heavy | 15.00 | 15.30 | 141.05 | 141.55 | 3120 | 165 | 26 | 3 | ● |
| 5.0″ Super Heavy | 16.50 | 17.00 | 141.05 | 141.55 | 3120 | 165 | 35 | 3 | ● |
| (6.0) DN:150 mm OD: 168 mm | |||||||||
| 6.0″ Standard | 14.10 | 14.45 | 167.7 | 168.8 | 3115 | 200 | 18 | 1 | ● |
| 6.0″ Heavy | 16.50 | 17.30 | 167.7 | 168.8 | 3115 | 200 | 26 | 1 | ● |
Load & Pressure Technical Data
| Type & Size OD – Outside Dia NB – Nominal Bore | Ultimate Breaking Load (Kgf) | Safe Loading with Chain Pulling (Kgf) | Safe Allowable Hydrostatic Pressure (Kgf) | Safe Total Submerging Depth (ft) | Safe Installation Depth (Mtr) | Safe Installation Depth (Feet) | Weight of Pipes on Suitabl Depth in Kg (A) | Weight of Suitable Water on Depth in Kg (B) | Weight of Pump on Suitable Depth in Kg (C) | Total Weight on Suitable Depth in Kg (A+B+C) |
|---|---|---|---|---|---|---|---|---|---|---|
| OD: 33mm (1″) NB: 25 mm | ||||||||||
| Nano 12.5 | 850 | 500 | 12.5 | 125 | 25 | 80 | 9 | 15 | 19.7 | 43.70 |
| Nano 15 | 1000 | 580 | 15 | 150 | 30 | 99 | 10 | 19 | 19.7 | 48.70 |
| Medium | 1500 | 800 | 21 | 210 | 65 | 214.5 | 26 | 41 | 23.2 | 90.20 |
| Standard | 2200 | 1250 | 26 | 300 | 150 | 495 | 75 | 85 | 20.8 | 180.80 |
| OD: 42mm (1.25″) NB: 32 mm | ||||||||||
| Nano 12.5 | 1600 | 800 | 12.5 | 125 | 25 | 80 | 17 | 23 | 17.8 | 51.80 |
| Nano 15 | 1720 | 900 | 15 | 150 | 30 | 99 | 17 | 28 | 17.8 | 62.80 |
| Medium | 1800 | 1150 | 21 | 210 | 65 | 214.5 | 39 | 61 | 21.8 | 121.80 |
| Standard | 2650 | 1400 | 26 | 250 | 150 | 495 | 99 | 135 | 22.6 | 256.60 |
| Heavy | 3100 | 1800 | 35 | 280 | 175 | 574 | 113 | 135 | 100 | 348.0 |
| Super Heavy | 3150 | 1850 | 35 | 400 | 185 | 610 | – | – | – | – |
| Extra Superheavy | 3500 | 2070 | 40 | 450 | 198 | 650 | – | – | – | – |
| OD: 48mm (1.5″) NB: 40 mm | ||||||||||
| Nano | 2000 | 1000 | 15 | 150 | 30 | 99 | 19 | 33 | 24.1 | 76.10 |
| Medium | 2900 | 1200 | 21 | 210 | 65 | 214.5 | 41 | 72 | 24.5 | 137.50 |
| Standard | 3200 | 1500 | 26 | 260 | 120 | 396 | 97 | 127 | 35.9 | 259.90 |
| Heavy | 4200 | 2000 | 35 | 350 | 160 | 528 | 174 | 162 | 41.6 | 377.60 |
| Super Heavy | 4350 | 2150 | 35 | 400 | 185 | 610 | – | – | – | – |
| OD: 60mm (2″) ND: 50 mm | ||||||||||
| Eco Medium | 2730 | 1750 | 13 | 90 | 30 | 99 | 21 | 68 | 51 | 140.0 |
| Nano | 2730 | 1750 | 11 | 90 | 30 | 99 | 21 | 68 | 51 | 140.0 |
| Medium | 3040 | 2000 | 15 | 130 | 65 | 214.5 | 54 | 148 | 60 | 262.0 |
| Standard | 4950 | 2500 | 20 | 170 | 100 | 330 | 116 | 216 | 75 | 407.0 |
| Standard++ | 5098 | 2700 | 23 | 200 | 120 | 396 | 154 | 255 | 106 | 515.0 |
| Heavy | 5682 | 3200 | 27 | 270 | 180 | 594 | 273 | 368 | 126 | 767.0 |
| Super Heavy | 6200 | 3600 | 35 | 350 | 225 | 735 | 380.0 | 440.0 | 141 | 961.0 |
| Extra Superheavy | 8200 | 3800 | 40 | 300 | 185 | 750 | 450.0 | 320.0 | 150 | 920.0 |
| OD: 63mm (2 1/4″) ND: 57 mm | ||||||||||
| Heavy | 5750 | 3385 | 26 | 300 | 178 | 585 | – | – | – | – |
| Super Heavy | 5800 | 3500 | 35 | 330 | 220 | 720 | – | – | – | – |
| OD: 75mm (2.5″) ND: 65 mm | ||||||||||
| Medium | 4496 | 2800 | 13 | 100 | 65 | 214.5 | 88 | 181 | 80 | 349.0 |
| Standard | 5934 | 3600 | 18 | 160 | 120 | 396 | 188 | 321 | 122.5 | 631.50 |
| Standard++ | 6683 | 3800 | 21 | 210 | 150 | 495 | 276 | 384 | 149 | 809.50 |
| Heavy | 7432 | 4000 | 26 | 260 | 180 | 594 | 364 | 448 | 176 | 988.0 |
| Super Heavy | 9194 | 4250 | 35 | 350 | 200 | 660 | 475 | 475 | 203 | 1159.0 |
| Extra Superheavy | 10000 | 4850 | 40 | 300 | 185 | 750 | 216 | 530 | 200 | 946.0 |
| OD: 88mm (3″) ND: 80 mm | ||||||||||
| Medium | 5934 | 4000 | 11 | 110 | 65 | 214.5 | 94 | 325 | 72 | 491.0 |
| Standard | 9112 | 5010 | 18 | 170 | 120 | 396 | 234 | 578 | 294 | 1106.0 |
| Standard++ | 9556 | 5505 | 21 | 185 | 150 | 495 | 355 | 693 | 351 | 1398.0 |
| Heavy | 10000 | 6000 | 26 | 200 | 180 | 594 | 475 | 808 | 408.5 | 1691.50 |
| Heavy ++ | 10500 | 6200 | 26 | 260 | 190 | 627 | 502 | 853 | 414 | 1796.0 |
| Super Heavy | 12000 | 6500 | 35 | 350 | 225 | 742.5 | 720 | 993 | 418 | 2131.0 |
| Extra Superheavy | 12000 | 6850 | 40 | 300 | 185 | 750 | 303 | 720 | 250 | 1273.0 |
| OD: 100mm (3.5″) ND: 90 mm | ||||||||||
| Heavy ++ | 13568 | 9350 | 32 | 260 | 190 | 627 | 668 | 980 | 425 | 2073.0 |
| Super Heavy | 13568 | 9350 | 35 | 300 | 230 | 750 | – | – | – | – |
| OD: 113mm (4″) ND: 100 mm | ||||||||||
| Medium | 11402 | 4500 | 10 | 100 | 65 | 214.5 | 179 | 428 | 181 | 728.0 |
| Standard | 12150 | 7250 | 16 | 150 | 120 | 396 | 343 | 759 | 326 | 1428.0 |
| Standard++ | 14065 | 9625 | 21 | 175 | 150 | 495 | 566 | 908 | 383 | 1855.0 |
| Heavy | 15980 | 12000 | 26 | 200 | 180 | 594 | 790 | 1057 | 441.5 | 2288.0 |
| Heavy ++ | 16636 | 12500 | 26 | 260 | 190 | 627 | 834 | 1115 | 452 | 2401.0 |
| Super Heavy | 17536 | 13100 | 35 | 350 | 225 | 742.5 | 1199 | 1306 | 455 | 2960.0 |
| Extra Superheavy | 17536 | 13100 | 40 | 350 | 225 | 742.5 | 1199 | 1306 | 455 | 2960.0 |
| OD: 140mm (5″) ND: 125 mm | ||||||||||
| Medium | 12000 | 7540 | 10 | 100 | 65 | 214.5 | 272 | 526 | 176 | 974.0 |
| Standard | 16000 | 10440 | 16 | 160 | 120 | 396 | 558 | 933 | 377 | 1868.0 |
| Heavy | 17058 | 16240 | 26 | 200 | 180 | 594 | 1123 | 1282 | 465 | 2870.0 |
| Heavy ++ | 18000 | 170CC | 26 | 260 | 190 | 627 | 1185 | 1354 | 465 | 3004.0 |
| Super Heavy | 30000 | 180CC | 35 | 350 | 225 | 742.5 | 1827 | 1565 | 478 | 3870.0 |
| OD: 168mm (6″) ND: 150 mm | ||||||||||
| Standard | 18050 | 12550 | 16 | 160 | 120 | 396.0 | 1420 | 2250 | 800 | 4470 |
| Heavy | 22000 | 18050 | 26 | 260 | 180 | 594 | 1773 | 2224 | 1000 | 4997 |
Our Products
FAQs
What is uPVC column pipe? Is it the same as boring pipe or submersible pipe?
uPVC column pipe, boring pipe, and submersible pipe are different names for the same product. “Boring pipe” is the common local term, “column pipe” is the technical name. Duke Pipes manufactures IS certified uPVC column pipes from 1″ to 6″ for all borewell applications.
Which pipe is best for borewell — uPVC, GI, or MS?
uPVC column pipe is the best choice. It is corrosion-free, non-toxic, and more energy-efficient than GI, MS, or HDPE pipes. Duke’s uPVC column pipes support depths up to 225+ meters in Extra Super Heavy series.
What is the uPVC column pipe price? / borewell column pipe price?
Price varies by diameter and series. For accurate quote based on your depth and pump requirement, call +91 73920 73920.
What is submersible pipe price / boring pipe price?
Price depends on series, diameter, and quantity. For the best casing pipe price, call +91 73920 73920 or email [email protected]. Bulk discounts available for dealers and contractors.
Is Duke Pipes column pipe IS certified and quality tested?
Duke Pipes is a National Quality Award 2007 winner. Every column pipe has Inkjet printing & Hallmark to prevent duplication. Manufacturing since 1998 from Palanpur, Gujarat.
How to become a Duke Pipes column pipe dealer or distributor?
Visit our Become a Dealer page or call +91 73920 73920. Opportunities available in Gujarat, Rajasthan, Maharashtra, Haryana, and across India.
